Насос топливный высокого давления DP200 (DP200 FUEL INJECTION PUMP) — 8924A492T
Артикул: 8924A492T
Производитель:
Розница
0 ₽
В наличии ( шт )
Артикул Насос топливный высокого давления DP200 — 8924A492T
Параметры
Вес нетто (кг): 0.001
Бренд: DELPHI
Качество: Оригинал

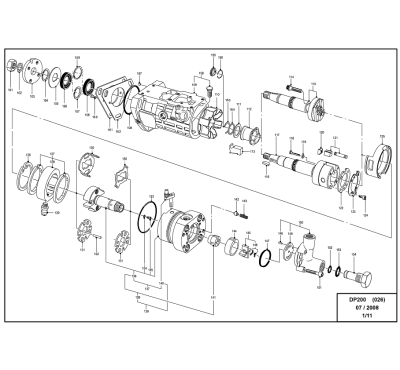

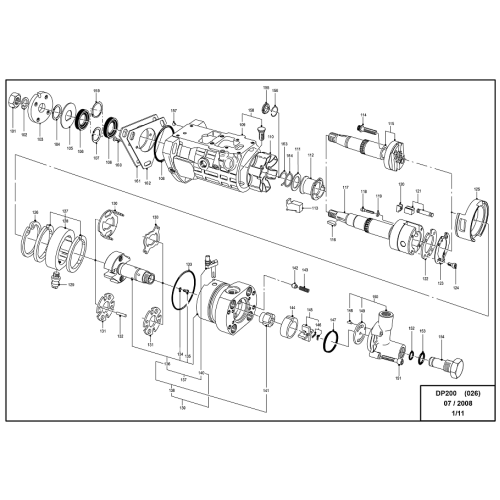

LSN Qty Part Number Name
1001 4 7185-304A CA Housing Screw (Ref 7185-304A)
1002 1 7189-028 Adv Cover Plate (Ref 7189-028)
1003 1 7185-950HK O Ring (Ref 7185-950HK)
1004 1 7189-163B Light Load Spring (Ref 7189-163B)
1005 1 7189-096ENX10 LIGHT LOAD SCREW (Ref 7189-096ENX10)
1006 1 7189-093 E-Clip (Ref 7189-093)
1007 AR 7189-044D Shim (Ref 7189-044D)
1007 AR 7189-044C Shim (Ref 7189-044C)
1007 AR 7189-044B Shim (Ref 7189-044B)
1007 AR 7189-044A Shim (Ref 7189-044A)
1007 AR 7189-044E Shim (Ref 7189-044E)
1008 1 7189-095 Light Load Piston (Ref 7189-095)
1011 1 7189-093 E-Clip (Ref 7189-093)
1012 1 7243-956 AA Hsg & Piston (Ref 7243-956)
1013 1 7183-209 Advance Hsg Gasket (Ref 7183-209)
1014 1 7185-950HNX10 O RING (Ref 7185-950HNX10)
1015 1 7189-028A Advance End Cover (Ref 7189-028A)
1019 1 7185-950FR O Ring (Ref 7185-950FR)
1020 1 7189-012 HLF Plug (Ref 7189-012)
1021 1 7185-950HQ O Ring (Ref 7185-950HQ)
1022 1 7185-950GC O Ring (Ref 7185-950GC)
1023 1 7189-011 Hd Locating Fitting (Ref 7189-011)
1024 1 5330-362B Housing Stud Cap Nut (Ref 5330-362B)
1025 1 7185-222 Sealing Washer (Ref 7185-222)
1026 1 7167-523 Plug (Ref 7167-523)
104 1 7174-797 D/Shaft Circlip (Ref 7174-797)
105 1 NOTE-26-A1 Thrust Washer
106 2 7174-856 D/Shaft Oil Seal (Ref 7174-856)
108 1 5855-030HC O Ring (Ref 5855-030HC)
110 1 7174-73E Governor Weight Cage (Ref 7174-73E)
1101 1 7185-950HL O Ring (Ref 7185-950HL)
1102 1 7180-946A Plug (Ref 7180-946A)
1103 1 7180-939 Trunnion (Ref 7180-939)
1104 1 7185-851S Washer (Ref 7185-851S)
1105 1 7185-854D Idle Screw Lock Nut (Ref 7185-854D)
1106 1 5330-406 Nut (Ref 5330-406)
1107 1 7185-851M Washer (Ref 7185-851M)
1108 1 7180-938X10 THROTTLE LEVER (Ref 7180-938X10)
1109 1 7123-728A Dust Cover (Ref 7123-728A)
111 1 5936-124A Thrust Washer (Ref 5936-124A)
1110 1 7185-854FX10 NUT (Ref 7185-854FX10)
1111 1 7180-940X10 SCREW (Ref 7180-940X10)
112 1 7185-718 Thrust Sleeve (Ref 7185-718)
113 4 7123-914J Governor Weight (Ref 7123-914J)
114 2 5334-245 Drive Plate Screw (Ref 5334-245)
115 1 7185-184B Drive Shaft (Ref 7185-184B)
116 1 NK1-22 Woodruff Key (Ref NK1-22)
121 1 7135-250 Roller & Shoe Kit (Ref 7135-250)
125 1 7182-19J Inner Bearing (Ref 7182-19J)
127 1 7189-100CW Cam & Scroll Kit (Ref 7189-100CW)
129 1 7189-086 Cam Ring Screw (Ref 7189-086)
131 2 7185-075A Cheek Plate (Ref 7185-075A)
132 2 7185-074 Cheek Plate Dowel (Ref 7185-074)
133 1 9167-415P O Ring (Ref 9167-415P)
139 1 7189-187L Hd, Rotor & M/Valve (Ref 7189-187L)
140 1 NOTE-21-A2 Metering Valve
141 1 7182-245 Transfer pump rotor (Ref 7182-245)
142 1 7189-310 Poppet Valve (Ref 7189-310)
143 1 7187-094A Poppet Valve Spring (Ref 7187-094A)
144 1 7185-469 Transfer Pump Liner (Ref 7185-469)
145 1 7135-108 TP Blade/Spring Kit (Ref 7135-108)
146 2 7182-078 TP Blade Spring (Ref 7182-078)
147 1 7139-043 TP Liner Seal (Ref 7139-043)
148 1 ND1-063 Endplate Dowel Pin (Ref ND1-063)
149 1 7180-147A Sandwich Plate (Ref 7180-147A)
150 1 7135-191 TP Endplate Kit (Ref 7135-191)
151 4 7185-015 Endplate Screw (Ref 7185-015)
158 1 7243-073AK Pump Housing & Stud (Ref 7243-073AK)
159 1 7189-494 Spacer (Ref 7189-494)
209 1 7185-950FV O Ring (Ref 7185-950FV)
211 1 7185-479 Head Locking Bolt (Ref 7185-479)
218 1 7185-950FV O Ring (Ref 7185-950FV)
222 1 7189-009 LLA Valve Adjuster (Ref 7189-009)
223 1 7185-950FM O Ring (Ref 7185-950FM)
225 1 28344587 Tamper Resist Plug (Ref 28344587)
226 1 7182-234 Head Lockbolt Filter (Ref 7182-234)
230 1 7180-70 Protection Cap (Ref 7180-70)
235 1 7185-900T Stop Solenoid (Ref 7185-900T)
236 1 5855-030HE O Ring (Ref 5855-030HE)
239 1 7185-793 Protection Plug (Ref 7185-793)
240 1 7133-037G Inlet Connection (Ref 7133-037G)
241 1 7185-950EZ O Ring (Ref 7185-950EZ)
242 1 7123-620A Endplate Filter (Ref 7123-620A)
248 1 7180-453 Washer (Ref 7180-453)
250 1 6418-053 Nameplate (Ref 6418-053)
251 2 7185-849 Nameplate Rivet (Ref 7185-849)
255 1 7182-691 Blanking Plug (Ref 7182-691)
256 1 7180-738A Sealing Washer (Ref 7180-738A)
257 1 7167-299 Housing Plug Bolt (Ref 7167-299)
258 1 7185-950FK O Ring (Ref 7185-950FK)
260 1 7185-172 Support Bracket (Ref 7185-172)
261 6 7185-222 Sealing Washer (Ref 7185-222)
262 6 7182-447AG Delivery Valve (Ref 7182-447AG)
263 6 7185-128A DV Spring (Ref 7185-128A)
264 6 7185-129A DV Spring Guide (Ref 7185-129A)
265 6 28211055 DV Holder (Ref 28211055)
267 4 7167-667A Bracket Screw (Ref 7167-667A)
269 6 7139-979 Protection Cap (Ref 7139-979)
284 1 7180-879A Retaining Spring (Ref 7180-879A)
285 1 7139-650G Pressure Adjuster (Ref 7139-650G)
286 1 7167-183B Reg Spring & Guide (Ref 7167-183B)
287 1 7123-015G Regulating Piston (Ref 7123-015G)
294 1 7243-107 Screw (Ref 7243-107)
295 1 7243-108 Bracket (Ref 7243-108)
296 1 7243-106 Nut (Ref 7243-106)
297 1 7189-426 Regulating Sleeve Assy (Ref 7189-426)
502 1 7185-213B Tamperproof Cap (Ref 7185-213B)
503 1 7182-966C Max Fuel Adj Screw (Ref 7182-966C)
504 1 7174-917C Tamperproof Nut (Ref 7174-917C)
505 1 5936-208C Sealing Washer (Ref 5936-208C)
507 1 7180-936B Governor Cover (Ref 7180-936B)
508 4 7174-895D Governor Cover Screw (Ref 7174-895D)
601 1 7185-794 Gov Cov Trapped Seal (Ref 7185-794)
602 2 7185-950 O Ring (Ref 7185-950)
603 1 7123-770W Throttle Shaft (Ref 7123-770W)
604 1 7123-898V Governor Spring (Ref 7123-898V)
605 1 7174-641C Pivot Ball Washer (Ref 7174-641C)
606 1 7123-092A Idle Spring (Ref 7123-092A)
607 1 7182-664 Spring Peg (Ref 7182-664)
610 1 7135-270D Spring Link (Ref 7135-270D)
611 1 7182-130F Control Bracket Assy (Ref 7182-130F)
612 1 7182-562 Tab Washer (Ref 7182-562)
613 1 7182-23 Control Bracket Bolt (Ref 7182-23)
614 1 7185-154A Governor Arm (Ref 7185-154A)
615 1 7182-23A Control Bracket Bolt (Ref 7182-23A)
616 1 7182-562 Tab Washer (Ref 7182-562)
617 1 7182-132 Spring Stop (Ref 7182-132)
618 1 7182-159 Scroll Plate Spring (Ref 7182-159)
619 1 7182-145 Spring Pin Guide (Ref 7182-145)
620 1 7189-257 Control Bracket Bolt (Ref 7189-257)
621 1 7189-257 Control Bracket Bolt (Ref 7189-257)
630 1 7185-793 Protection Plug (Ref 7185-793)
631 1 7185-773D Backleak Connection (Ref 7185-773D)
632 1 7185-815F O Ring (Ref 7185-815F)
9999 1 7135-277A Overhaul Kit (Ref 7135-277A)
9999 1 7135-277B Overhaul Kit (Ref 7135-277B)
