Насос топливный высокого давления DP210 — 9320A210G
Артикул: 9320A210G
Производитель:
Розница
0 ₽
В наличии ( шт )
Артикул Насос топливный высокого давления DP210 — 9320A210G
Параметры
Вес нетто (кг): 8.16
Длина, мм: 368
Ширина, мм: 296
Высота, мм: 278
Бренд: DELPHI
Качество: Оригинал
Delphi запчасти
Артикул Наименование
9320A051G DP210/DP310 Pumps (Ref 9320A051G)
9320A050G DP210/DP310 Pumps (Ref 9320A050G)
9320A212G DP210/DP310 Pumps (Ref 9320A212G)
9320A211G DP210/DP310 Pumps (Ref 9320A211G)
9320A210G DP210/DP310 Pumps (Ref 9320A210G)
9320A213G DP210/DP310 Pumps (Ref 9320A213G)
9320A214G DP210/DP310 Pumps (Ref 9320A214G)
9320A218G DP210/DP310 Pumps (Ref 9320A218G)
9320A217G DP210/DP310 Pumps (Ref 9320A217G)
9320A216G DP210/DP310 Pumps (Ref 9320A216G)
9320A215G DP210/DP310 Pumps (Ref 9320A215G)
9323A350G DP210/DP310 Pumps (Ref 9323A350G)
Документы

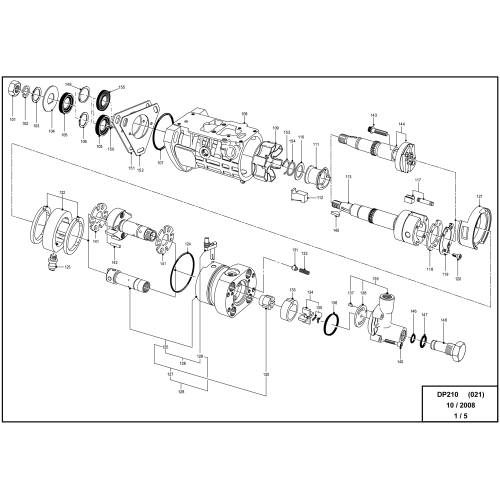

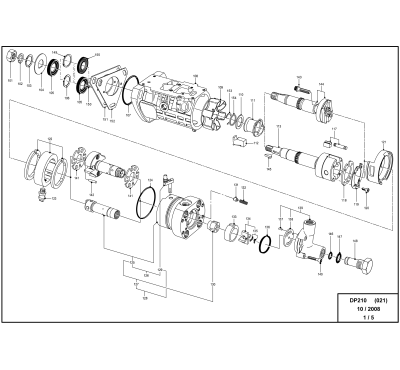

LSN Qty Part Number Name
101 1 7185-758 Drive Shaft Nut (Ref 7185-758)
102 1 7185-705 Spring Washer (Ref 7185-705)
103 1 7174-797 D/Shaft Circlip (Ref 7174-797)
104 1 NOTE-21-A1 Thrust Washer
105 2 7174-856 D/Shaft Oil Seal (Ref 7174-856)
106 1 7185-501 D/Shaft Circlip (Ref 7185-501)
107 1 7185-973 O Ring (Ref 7185-973)
108 1 7243-073AD Pump Housing (Ref 7243-073AD)
109 1 7174-73E Governor Weight Cage (Ref 7174-73E)
110 1 5936-124A Thrust Washer (Ref 5936-124A)
111 1 7185-718 Thrust Sleeve (Ref 7185-718)
112 4 7123-914J Governor Weight (Ref 7123-914J)
113 1 7135-492B Drive Shaft (Ref 7135-492B)
117 1 7135-72S Roller & Shoe Kit (Ref 7135-72S)
118 1 7182-6 Shoe Retaining Plate (Ref 7182-6)
119 1 7185-978 Catch Plate (Ref 7185-978)
120 4 7174-350A Catch Plate Screw (Ref 7174-350A)
121 1 7182-019M Inner Bearing (Ref 7182-019M)
122 1 7189-100BQ Cam & Scroll Kit (Ref 7189-100BQ)
123 1 7189-086 Cam Ring Screw (Ref 7189-086)
124 1 9167-415P O Ring (Ref 9167-415P)
126 1 7189-039L Hd, Rotor & M/Valve (Ref 7189-039L)
129 1 NOTE-21-A2 Metering Valve
130 1 7182-245 Transfer pump rotor (Ref 7182-245)
131 1 7189-310 Poppet Valve (Ref 7189-310)
132 1 7187-094A Poppet Valve Spring (Ref 7187-094A)
133 1 7185-469 Transfer Pump Liner (Ref 7185-469)
134 1 7135-108 TP Blade/Spring Kit (Ref 7135-108)
135 2 7182-078 TP Blade Spring (Ref 7182-078)
136 1 7139-043 TP Liner Seal (Ref 7139-043)
137 1 ND1-063 Endplate Dowel Pin (Ref ND1-063)
138 1 7180-147A Sandwich Plate (Ref 7180-147A)
139 1 XSX592 CROSS REFERENCE NOTE (Ref XSX592)
140 4 7185-015 Endplate Screw (Ref 7185-015)
201 1 7185-694A Tamper Resist Plug (Ref 7185-694A)
202 1 7183-200D O Ring (Ref 7183-200D)
203 1 7243-513 Latch Valve Assy (Ref 7243-513)
206 1 7185-950FV O Ring (Ref 7185-950FV)
207 1 7185-950GB O Ring (Ref 7185-950GB)
208 1 7185-950HG O Ring (Ref 7185-950HG)
209 1 9007-497BP Sealing Washer (Ref 9007-497BP)
210 1 9101-335 Blanking Plug (Ref 9101-335)
211 1 7185-694A Tamper Resist Plug (Ref 7185-694A)
212 1 7189-009 LLA Valve Adjuster (Ref 7189-009)
213 1 7183-200W O Ring (Ref 7183-200W)
214 1 28344587 Tamper Resist Plug (Ref 28344587)
215 1 7182-234 Head Lockbolt Filter (Ref 7182-234)
216 1 7185-950FV O Ring (Ref 7185-950FV)
217 1 7180-70 Protection Cap (Ref 7180-70)
221 1 7185-900G Stop Solenoid (Ref 7185-900G)
222 1 5855-030HE O Ring (Ref 5855-030HE)
223 1 7189-041 Protection Cap (Ref 7189-041)
224 1 7189-361 Inlet Connection (Ref 7189-361)
225 1 7185-950HP O Ring (Ref 7185-950HP)
226 1 7123-620A Endplate Filter (Ref 7123-620A)
227 1 7183-200C O Ring (Ref 7183-200C)
228 1 7183-200U O Ring (Ref 7183-200U)
229 1 7189-025A Regulating Spring (Ref 7189-025A)
230 1 7189-024 Spring Plate (Ref 7189-024)
231 1 7189-256AX10 REGULATING SPRING (Ref 7189-256AX10)
232 1 7243-777 Regulating Sleeve Assy (Ref 7243-777)
233 1 7185-950FR O Ring (Ref 7185-950FR)
234 1 7185-247 Piston Retainer (Ref 7185-247)
235 1 7185-237C Clamping Plate (Ref 7185-237C)
236 4 7139-979 Protection Cap (Ref 7139-979)
237 4 7185-852A Clamping Plate Nut (Ref 7185-852A)
238 4 7167-667A Bracket Screw (Ref 7167-667A)
239 4 28211055 DV Holder (Ref 28211055)
240 4 7185-129 DV Spring Guide (Ref 7185-129)
241 4 7185-128A DV Spring (Ref 7185-128A)
242 4 7182-447AG Delivery Valve (Ref 7182-447AG)
243 4 7185-222 Sealing Washer (Ref 7185-222)
244 1 7189-059 Support Bracket (Ref 7189-059)
245 1 7167-299 Housing Plug Bolt (Ref 7167-299)
246 1 7185-950FK O Ring (Ref 7185-950FK)
247 1 7189-003 D/Shaft Lock Screw (Ref 7189-003)
248 1 7183-200MX10 O RING (Ref 7183-200MX10)
249 1 7189-002X10 WASHER (Ref 7189-002X10)
250 2 7185-849 Nameplate Rivet (Ref 7185-849)
251 1 6418-053 Nameplate (Ref 6418-053)
301 4 7185-304A CA Housing Screw (Ref 7185-304A)
302 1 7189-028 Adv Cover Plate (Ref 7189-028)
303 1 7185-950HK O Ring (Ref 7185-950HK)
304 1 7189-163D Light Load Spring (Ref 7189-163D)
305 1 7189-096DQ Light Load Screw (Ref 7189-096DQ)
306 1 7189-093 E-Clip (Ref 7189-093)
307 AR 7189-044A Shim (Ref 7189-044A)
307 AR 7189-044B Shim (Ref 7189-044B)
307 AR 7189-044C Shim (Ref 7189-044C)
307 AR 7189-044D Shim (Ref 7189-044D)
307 AR 7189-044E Shim (Ref 7189-044E)
308 1 7189-095 Light Load Piston (Ref 7189-095)
309 1 7189-091A Advance Spring (Ref 7189-091A)
310 AR 7189-094A Spring Plate (Ref 7189-094A)
310 AR 7189-094B Spring Plate (Ref 7189-094B)
310 AR 7189-094D Spring Plate (Ref 7189-094D)
310 AR 7189-094G Spring Plate (Ref 7189-094G)
310 AR 7189-094H Spring Plate (Ref 7189-094H)
310 AR 7189-094J Spring Plate (Ref 7189-094J)
310 AR 7189-094K Spring Plate (Ref 7189-094K)
310 AR 7189-094L Spring Plate (Ref 7189-094L)
310 AR 7189-094M Spring Plate (Ref 7189-094M)
310 AR 7189-094N Spring Plate (Ref 7189-094N)
310 AR 7189-094F Spring Plate (Ref 7189-094F)
310 AR 7189-094E Spring Plate (Ref 7189-094E)
310 AR 7189-094C Spring Plate (Ref 7189-094C)
311 1 7189-093 E-Clip (Ref 7189-093)
312 1 7243-923 AA Hsg & Piston (Ref 7243-923)
313 1 7183-209 Advance Hsg Gasket (Ref 7183-209)
314 1 7185-950GY O Ring (Ref 7185-950GY)
315 1 7189-028 Adv Cover Plate (Ref 7189-028)
316 1 7185-854B Nut (Ref 7185-854B)
317 1 7167-786 Washer (Ref 7167-786)
319 1 7185-900W Advance solenoid (Ref 7185-900W)
320 1 5855-030HE O Ring (Ref 5855-030HE)
321 1 7189-012 HLF Plug (Ref 7189-012)
322 1 7183-200VX10 O RING (Ref 7183-200VX10)
323 1 7185-950GC O Ring (Ref 7185-950GC)
324 1 7189-011 Hd Locating Fitting (Ref 7189-011)
325 1 5330-362B Housing Stud Cap Nut (Ref 5330-362B)
326 1 7185-222 Sealing Washer (Ref 7185-222)
401 1 7189-257 Control Bracket Bolt (Ref 7189-257)
402 1 7189-257 Control Bracket Bolt (Ref 7189-257)
403 1 7182-23A Control Bracket Bolt (Ref 7182-23A)
404 1 7182-674 Tab Washer (Ref 7182-674)
405 1 7189-015X10 SPRING GUIDE (Ref 7189-015X10)
406 1 7135-560 GUIDE PIN AND SPRING KIT (Ref 7135-560)
407 1 28282146 Spring Pin Guide (Ref 28282146)
408 1 7189-421 Control Bracket Assy (Ref 7189-421)
409 1 7185-154C Governor Arm (Ref 7185-154C)
410 1 7182-562 Tab Washer (Ref 7182-562)
411 1 7182-23 Control Bracket Bolt (Ref 7182-23)
414 1 7189-043X10 PROTECTION CAP (Ref 7189-043X10)
415 1 7189-142A Backleak Adaptor (Ref 7189-142A)
416 1 7185-950DV O Ring (Ref 7185-950DV)
417 4 7174-895C Governor Cover Screw (Ref 7174-895C)
418 1 7189-058C Gov Cover & Piston (Ref 7189-058C)
419 1 7189-311 Gov Cov Trapped Seal (Ref 7189-311)
420 2 7185-950 O Ring (Ref 7185-950)
421 1 7123-770X Throttle Shaft (Ref 7123-770X)
422 1 7135-270E Spring Link (Ref 7135-270E)
423 1 7123-094E Governor Spring (Ref 7123-094E)
424 1 7174-641C Pivot Ball Washer (Ref 7174-641C)
425 1 7182-606A Idle Spring (Ref 7182-606A)
426 1 7182-607 Spring Peg (Ref 7182-607)
501 1 7185-650A Boost Housing Cover (Ref 7185-650A)
504 2 7185-645 Boost Cover Bolt (Ref 7185-645)
507 1 7182-590C Boost Spring (Ref 7182-590C)
508 AR 7182-584A Shim (Ref 7182-584A)
508 AR 7182-584B Shim (Ref 7182-584B)
508 AR 7182-584C Shim (Ref 7182-584C)
508 AR 7182-584D Shim (Ref 7182-584D)
509 1 7185-950FC O Ring (Ref 7185-950FC)
510 1 7182-577D Stroke Adj Screw (Ref 7182-577D)
511 1 7185-954 Adjusting Screw Body (Ref 7185-954)
512 1 7182-584B Shim (Ref 7182-584B)
513 1 7182-20C Dowel (Ref 7182-20C)
514 1 7185-950DV O Ring (Ref 7185-950DV)
515 1 7182-663A Boost Ctrl Housing (Ref 7182-663A)
516 1 7185-793 Protection Plug (Ref 7185-793)
517 1 7183-200MX10 O RING (Ref 7183-200MX10)
518 1 7185-950GT Plug Screw Seal (Ref 7185-950GT)
519 1 7189-148 Banjo & Pipe (Ref 7189-148)
520 1 7185-950GT Plug Screw Seal (Ref 7185-950GT)
521 1 7185-641 Gov Cover Plug Screw (Ref 7185-641)
522 1 7174-637 Self Lock Nut (Ref 7174-637)
523 1 7185-851V Washer (Ref 7185-851V)
524 1 7167-983A Spring Guide (Ref 7167-983A)
525 1 7182-968 Lever Return Spring (Ref 7182-968)
526 1 7182-706 Bush (Ref 7182-706)
527 1 7182-703 Spring Guide (Ref 7182-703)
528 1 7189-140 Spring Seat (Ref 7189-140)
529 1 7189-144 Throttle Lever (Ref 7189-144)
530 1 7189-149A Lever Return Spring (Ref 7189-149A)
531 1 7189-143 Break Back Lever (Ref 7189-143)
532 1 7182-628 Dust Cover (Ref 7182-628)
536 1 7022-180S Sealing Washer (Ref 7022-180S)
537 1 7182-569A Gov Cover Plug Screw (Ref 7182-569A)
538 1 7185-305 Circlip (Ref 7185-305)
539 1 7189-035 Pressure Plug (Ref 7189-035)
540 1 7185-950FV O Ring (Ref 7185-950FV)
541 1 7174-545B Lock Washer (Ref 7174-545B)
542 1 7185-854E Idle Screw Lock Nut (Ref 7185-854E)
543 1 7174-594RX10 IDLE SCREW (Ref 7174-594RX10)
544 1 7185-223 E-Clip (Ref 7185-223)
545 1 7189-030 Cam Follower (Ref 7189-030)
546 1 7185-306 Washer (Ref 7185-306)
547 1 7189-040 Tamperproof Nut (Ref 7189-040)
548 1 7189-046C Max Speed Adj Screw (Ref 7189-046C)
549 1 7189-045X10 C-CLIP (Ref 7189-045X10)
550 1 7189-700DB Torque Trimmer Cam (Ref 7189-700DB)
551 1 7185-477A Excess Fuel Spring (Ref 7185-477A)
552 1 7185-478 Spring Plate (Ref 7185-478)
553 1 7185-670A TT Control Spring (Ref 7185-670A)
554 1 7185-950FV O Ring (Ref 7185-950FV)
555 1 7185-368 Shim (Ref 7185-368)
556 1 7185-307A Torque Trim Adjuster (Ref 7185-307A)
560 1 7135-277L Boost Diaphragm Assy (Ref 7135-277L)
9999 1 7135-277L Boost Diaphragm Assy (Ref 7135-277L)
9999 1 7135-277H Overhaul Kit (Ref 7135-277H)
Параметры
Вес нетто (кг): 8.16
Длина, мм: 368
Ширина, мм: 296
Высота, мм: 278
Бренд: DELPHI
Качество: Оригинал
Delphi запчасти
Артикул Наименование
9320A051G DP210/DP310 Pumps (Ref 9320A051G)
9320A050G DP210/DP310 Pumps (Ref 9320A050G)
9320A212G DP210/DP310 Pumps (Ref 9320A212G)
9320A211G DP210/DP310 Pumps (Ref 9320A211G)
9320A210G DP210/DP310 Pumps (Ref 9320A210G)
9320A213G DP210/DP310 Pumps (Ref 9320A213G)
9320A214G DP210/DP310 Pumps (Ref 9320A214G)
9320A218G DP210/DP310 Pumps (Ref 9320A218G)
9320A217G DP210/DP310 Pumps (Ref 9320A217G)
9320A216G DP210/DP310 Pumps (Ref 9320A216G)
9320A215G DP210/DP310 Pumps (Ref 9320A215G)
9323A350G DP210/DP310 Pumps (Ref 9323A350G)
Документы
LSN Qty Part Number Name
101 1 7185-758 Drive Shaft Nut (Ref 7185-758)
102 1 7185-705 Spring Washer (Ref 7185-705)
103 1 7174-797 D/Shaft Circlip (Ref 7174-797)
104 1 NOTE-21-A1 Thrust Washer
105 2 7174-856 D/Shaft Oil Seal (Ref 7174-856)
106 1 7185-501 D/Shaft Circlip (Ref 7185-501)
107 1 7185-973 O Ring (Ref 7185-973)
108 1 7243-073AD Pump Housing (Ref 7243-073AD)
109 1 7174-73E Governor Weight Cage (Ref 7174-73E)
110 1 5936-124A Thrust Washer (Ref 5936-124A)
111 1 7185-718 Thrust Sleeve (Ref 7185-718)
112 4 7123-914J Governor Weight (Ref 7123-914J)
113 1 7135-492B Drive Shaft (Ref 7135-492B)
117 1 7135-72S Roller & Shoe Kit (Ref 7135-72S)
118 1 7182-6 Shoe Retaining Plate (Ref 7182-6)
119 1 7185-978 Catch Plate (Ref 7185-978)
120 4 7174-350A Catch Plate Screw (Ref 7174-350A)
121 1 7182-019M Inner Bearing (Ref 7182-019M)
122 1 7189-100BQ Cam & Scroll Kit (Ref 7189-100BQ)
123 1 7189-086 Cam Ring Screw (Ref 7189-086)
124 1 9167-415P O Ring (Ref 9167-415P)
126 1 7189-039L Hd, Rotor & M/Valve (Ref 7189-039L)
129 1 NOTE-21-A2 Metering Valve
130 1 7182-245 Transfer pump rotor (Ref 7182-245)
131 1 7189-310 Poppet Valve (Ref 7189-310)
132 1 7187-094A Poppet Valve Spring (Ref 7187-094A)
133 1 7185-469 Transfer Pump Liner (Ref 7185-469)
134 1 7135-108 TP Blade/Spring Kit (Ref 7135-108)
135 2 7182-078 TP Blade Spring (Ref 7182-078)
136 1 7139-043 TP Liner Seal (Ref 7139-043)
137 1 ND1-063 Endplate Dowel Pin (Ref ND1-063)
138 1 7180-147A Sandwich Plate (Ref 7180-147A)
139 1 XSX592 CROSS REFERENCE NOTE (Ref XSX592)
140 4 7185-015 Endplate Screw (Ref 7185-015)
201 1 7185-694A Tamper Resist Plug (Ref 7185-694A)
202 1 7183-200D O Ring (Ref 7183-200D)
203 1 7243-513 Latch Valve Assy (Ref 7243-513)
206 1 7185-950FV O Ring (Ref 7185-950FV)
207 1 7185-950GB O Ring (Ref 7185-950GB)
208 1 7185-950HG O Ring (Ref 7185-950HG)
209 1 9007-497BP Sealing Washer (Ref 9007-497BP)
210 1 9101-335 Blanking Plug (Ref 9101-335)
211 1 7185-694A Tamper Resist Plug (Ref 7185-694A)
212 1 7189-009 LLA Valve Adjuster (Ref 7189-009)
213 1 7183-200W O Ring (Ref 7183-200W)
214 1 28344587 Tamper Resist Plug (Ref 28344587)
215 1 7182-234 Head Lockbolt Filter (Ref 7182-234)
216 1 7185-950FV O Ring (Ref 7185-950FV)
217 1 7180-70 Protection Cap (Ref 7180-70)
221 1 7185-900G Stop Solenoid (Ref 7185-900G)
222 1 5855-030HE O Ring (Ref 5855-030HE)
223 1 7189-041 Protection Cap (Ref 7189-041)
224 1 7189-361 Inlet Connection (Ref 7189-361)
225 1 7185-950HP O Ring (Ref 7185-950HP)
226 1 7123-620A Endplate Filter (Ref 7123-620A)
227 1 7183-200C O Ring (Ref 7183-200C)
228 1 7183-200U O Ring (Ref 7183-200U)
229 1 7189-025A Regulating Spring (Ref 7189-025A)
230 1 7189-024 Spring Plate (Ref 7189-024)
231 1 7189-256AX10 REGULATING SPRING (Ref 7189-256AX10)
232 1 7243-777 Regulating Sleeve Assy (Ref 7243-777)
233 1 7185-950FR O Ring (Ref 7185-950FR)
234 1 7185-247 Piston Retainer (Ref 7185-247)
235 1 7185-237C Clamping Plate (Ref 7185-237C)
236 4 7139-979 Protection Cap (Ref 7139-979)
237 4 7185-852A Clamping Plate Nut (Ref 7185-852A)
238 4 7167-667A Bracket Screw (Ref 7167-667A)
239 4 28211055 DV Holder (Ref 28211055)
240 4 7185-129 DV Spring Guide (Ref 7185-129)
241 4 7185-128A DV Spring (Ref 7185-128A)
242 4 7182-447AG Delivery Valve (Ref 7182-447AG)
243 4 7185-222 Sealing Washer (Ref 7185-222)
244 1 7189-059 Support Bracket (Ref 7189-059)
245 1 7167-299 Housing Plug Bolt (Ref 7167-299)
246 1 7185-950FK O Ring (Ref 7185-950FK)
247 1 7189-003 D/Shaft Lock Screw (Ref 7189-003)
248 1 7183-200MX10 O RING (Ref 7183-200MX10)
249 1 7189-002X10 WASHER (Ref 7189-002X10)
250 2 7185-849 Nameplate Rivet (Ref 7185-849)
251 1 6418-053 Nameplate (Ref 6418-053)
301 4 7185-304A CA Housing Screw (Ref 7185-304A)
302 1 7189-028 Adv Cover Plate (Ref 7189-028)
303 1 7185-950HK O Ring (Ref 7185-950HK)
304 1 7189-163D Light Load Spring (Ref 7189-163D)
305 1 7189-096DQ Light Load Screw (Ref 7189-096DQ)
306 1 7189-093 E-Clip (Ref 7189-093)
307 AR 7189-044A Shim (Ref 7189-044A)
307 AR 7189-044B Shim (Ref 7189-044B)
307 AR 7189-044C Shim (Ref 7189-044C)
307 AR 7189-044D Shim (Ref 7189-044D)
307 AR 7189-044E Shim (Ref 7189-044E)
308 1 7189-095 Light Load Piston (Ref 7189-095)
309 1 7189-091A Advance Spring (Ref 7189-091A)
310 AR 7189-094A Spring Plate (Ref 7189-094A)
310 AR 7189-094B Spring Plate (Ref 7189-094B)
310 AR 7189-094D Spring Plate (Ref 7189-094D)
310 AR 7189-094G Spring Plate (Ref 7189-094G)
310 AR 7189-094H Spring Plate (Ref 7189-094H)
310 AR 7189-094J Spring Plate (Ref 7189-094J)
310 AR 7189-094K Spring Plate (Ref 7189-094K)
310 AR 7189-094L Spring Plate (Ref 7189-094L)
310 AR 7189-094M Spring Plate (Ref 7189-094M)
310 AR 7189-094N Spring Plate (Ref 7189-094N)
310 AR 7189-094F Spring Plate (Ref 7189-094F)
310 AR 7189-094E Spring Plate (Ref 7189-094E)
310 AR 7189-094C Spring Plate (Ref 7189-094C)
311 1 7189-093 E-Clip (Ref 7189-093)
312 1 7243-923 AA Hsg & Piston (Ref 7243-923)
313 1 7183-209 Advance Hsg Gasket (Ref 7183-209)
314 1 7185-950GY O Ring (Ref 7185-950GY)
315 1 7189-028 Adv Cover Plate (Ref 7189-028)
316 1 7185-854B Nut (Ref 7185-854B)
317 1 7167-786 Washer (Ref 7167-786)
319 1 7185-900W Advance solenoid (Ref 7185-900W)
320 1 5855-030HE O Ring (Ref 5855-030HE)
321 1 7189-012 HLF Plug (Ref 7189-012)
322 1 7183-200VX10 O RING (Ref 7183-200VX10)
323 1 7185-950GC O Ring (Ref 7185-950GC)
324 1 7189-011 Hd Locating Fitting (Ref 7189-011)
325 1 5330-362B Housing Stud Cap Nut (Ref 5330-362B)
326 1 7185-222 Sealing Washer (Ref 7185-222)
401 1 7189-257 Control Bracket Bolt (Ref 7189-257)
402 1 7189-257 Control Bracket Bolt (Ref 7189-257)
403 1 7182-23A Control Bracket Bolt (Ref 7182-23A)
404 1 7182-674 Tab Washer (Ref 7182-674)
405 1 7189-015X10 SPRING GUIDE (Ref 7189-015X10)
406 1 7135-560 GUIDE PIN AND SPRING KIT (Ref 7135-560)
407 1 28282146 Spring Pin Guide (Ref 28282146)
408 1 7189-421 Control Bracket Assy (Ref 7189-421)
409 1 7185-154C Governor Arm (Ref 7185-154C)
410 1 7182-562 Tab Washer (Ref 7182-562)
411 1 7182-23 Control Bracket Bolt (Ref 7182-23)
414 1 7189-043X10 PROTECTION CAP (Ref 7189-043X10)
415 1 7189-142A Backleak Adaptor (Ref 7189-142A)
416 1 7185-950DV O Ring (Ref 7185-950DV)
417 4 7174-895C Governor Cover Screw (Ref 7174-895C)
418 1 7189-058C Gov Cover & Piston (Ref 7189-058C)
419 1 7189-311 Gov Cov Trapped Seal (Ref 7189-311)
420 2 7185-950 O Ring (Ref 7185-950)
421 1 7123-770X Throttle Shaft (Ref 7123-770X)
422 1 7135-270E Spring Link (Ref 7135-270E)
423 1 7123-094E Governor Spring (Ref 7123-094E)
424 1 7174-641C Pivot Ball Washer (Ref 7174-641C)
425 1 7182-606A Idle Spring (Ref 7182-606A)
426 1 7182-607 Spring Peg (Ref 7182-607)
501 1 7185-650A Boost Housing Cover (Ref 7185-650A)
504 2 7185-645 Boost Cover Bolt (Ref 7185-645)
507 1 7182-590C Boost Spring (Ref 7182-590C)
508 AR 7182-584A Shim (Ref 7182-584A)
508 AR 7182-584B Shim (Ref 7182-584B)
508 AR 7182-584C Shim (Ref 7182-584C)
508 AR 7182-584D Shim (Ref 7182-584D)
509 1 7185-950FC O Ring (Ref 7185-950FC)
510 1 7182-577D Stroke Adj Screw (Ref 7182-577D)
511 1 7185-954 Adjusting Screw Body (Ref 7185-954)
512 1 7182-584B Shim (Ref 7182-584B)
513 1 7182-20C Dowel (Ref 7182-20C)
514 1 7185-950DV O Ring (Ref 7185-950DV)
515 1 7182-663A Boost Ctrl Housing (Ref 7182-663A)
516 1 7185-793 Protection Plug (Ref 7185-793)
517 1 7183-200MX10 O RING (Ref 7183-200MX10)
518 1 7185-950GT Plug Screw Seal (Ref 7185-950GT)
519 1 7189-148 Banjo & Pipe (Ref 7189-148)
520 1 7185-950GT Plug Screw Seal (Ref 7185-950GT)
521 1 7185-641 Gov Cover Plug Screw (Ref 7185-641)
522 1 7174-637 Self Lock Nut (Ref 7174-637)
523 1 7185-851V Washer (Ref 7185-851V)
524 1 7167-983A Spring Guide (Ref 7167-983A)
525 1 7182-968 Lever Return Spring (Ref 7182-968)
526 1 7182-706 Bush (Ref 7182-706)
527 1 7182-703 Spring Guide (Ref 7182-703)
528 1 7189-140 Spring Seat (Ref 7189-140)
529 1 7189-144 Throttle Lever (Ref 7189-144)
530 1 7189-149A Lever Return Spring (Ref 7189-149A)
531 1 7189-143 Break Back Lever (Ref 7189-143)
532 1 7182-628 Dust Cover (Ref 7182-628)
536 1 7022-180S Sealing Washer (Ref 7022-180S)
537 1 7182-569A Gov Cover Plug Screw (Ref 7182-569A)
538 1 7185-305 Circlip (Ref 7185-305)
539 1 7189-035 Pressure Plug (Ref 7189-035)
540 1 7185-950FV O Ring (Ref 7185-950FV)
541 1 7174-545B Lock Washer (Ref 7174-545B)
542 1 7185-854E Idle Screw Lock Nut (Ref 7185-854E)
543 1 7174-594RX10 IDLE SCREW (Ref 7174-594RX10)
544 1 7185-223 E-Clip (Ref 7185-223)
545 1 7189-030 Cam Follower (Ref 7189-030)
546 1 7185-306 Washer (Ref 7185-306)
547 1 7189-040 Tamperproof Nut (Ref 7189-040)
548 1 7189-046C Max Speed Adj Screw (Ref 7189-046C)
549 1 7189-045X10 C-CLIP (Ref 7189-045X10)
550 1 7189-700DB Torque Trimmer Cam (Ref 7189-700DB)
551 1 7185-477A Excess Fuel Spring (Ref 7185-477A)
552 1 7185-478 Spring Plate (Ref 7185-478)
553 1 7185-670A TT Control Spring (Ref 7185-670A)
554 1 7185-950FV O Ring (Ref 7185-950FV)
555 1 7185-368 Shim (Ref 7185-368)
556 1 7185-307A Torque Trim Adjuster (Ref 7185-307A)
560 1 7135-277L Boost Diaphragm Assy (Ref 7135-277L)
9999 1 7135-277L Boost Diaphragm Assy (Ref 7135-277L)
9999 1 7135-277H Overhaul Kit (Ref 7135-277H)
