Насос топливный высокого давления MITSUBISHI L200 4D56 Euro4 — 294000-1240

Артикул Насос топливный высокого давления MITSUBISHI L200 4D56 Euro4 — 294000-1240

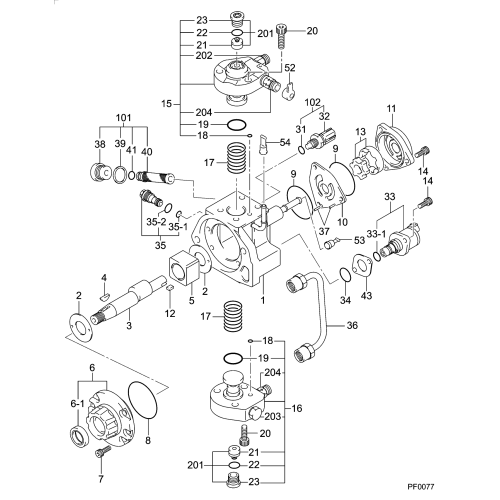

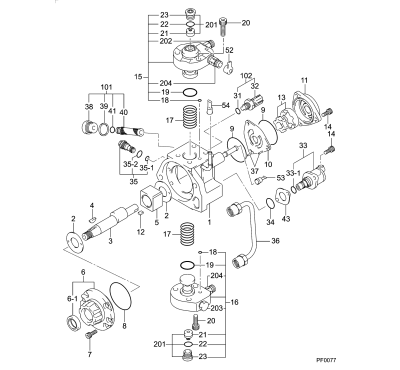

Position Qty Part Number Customer p/n Name Interchangeability Start Date Start Date
0 1 294000-1240 1460A057 PUMP ASSY, SUPPLY
1 1 SM294100-0561 HOUSING SUB-ASSY, SUPPLY PUMP
10 1 SM294183-0141 PLATE, FEED PUMP, FR
101 1 SM294009-0010 OVERHAUL KIT, SUPPLY PUMP
102 1 SM294009-0100 OVERHAUL KIT, SUPPLY PUMP
11 1 SM294184-0130 COVER, FEED PUMP
12 1 294187-0030 KEY, FEED PUMP 1107
12 1 294187-0050 KEY, FEED PUMP B 1107
13 1 SM294180-0100 ROTOR SET, FEED PUMP
14 5 SM096449-0370 BOLT, SOCKET
15 1 SM294090-0750 ELEMENT KIT, SUPPLY PUMP B 1107 1701
15 1 SM294090-1560 ELEMENT KIT, SUPPLY PUMP B 1701 2012
15 1 SM294090-0540 ELEMENT KIT, SUPPLY PUMP 1107
15 1 SM294090-1520 ELEMENT KIT, SUPPLY PUMP B 2012
16 1 SM294090-0550 ELEMENT KIT, SUPPLY PUMP 1107
16 1 SM294090-0770 ELEMENT KIT, SUPPLY PUMP B 1107 1701
16 1 SM294090-1570 ELEMENT KIT, SUPPLY PUMP B 1701 2012
16 1 SM294090-1770 ELEMENT KIT, SUPPLY PUMP B 2012
17 2 294159-0040 SPRING, PLUNGER
18 2 SM294198-0080 O-RING, SUPPLY PUMP
19 2 SM294198-0110 O-RING, SUPPLY PUMP
2 2 SM294178-0060 WASHER, CAMSHAFT
20 6 SM294199-0030 BOLT, SOCKET
200 1 SM294009-0080 OVERHAUL KIT, SUPPLY PUMP
201 2 SM294009-0940 OVERHAUL KIT, SUPPLY PUMP 1204
202 1 SM294090-5060 ELEMENT KIT, SUPPLY PUMP 1204
203 1 SM294090-5070 ELEMENT KIT, SUPPLY PUMP 1204
204 2 SM294131-0181 HOLDER, DELIVERY VALVE 1204
21 2 SM294140-0150 VALVE SUB-ASSY, SUCTION 1204
22 2 SM294198-0090 O-RING, SUPPLY PUMP 1204
23 2 SM294135-0042 PLUG, CYLINDER 1204
3 1 SM294191-0060 CAMSHAFT, SUPPLY PUMP 1109
3 1 SM294191-0110 CAMSHAFT, SUPPLY PUMP D 1109
31 1 SM294198-0150 O-RING, SUPPLY PUMP
32 1 179730-0100 SENSOR, FUEL TEMPERATURE
33 1 SM294200-0360 VALVE ASSY, SUCTION CONTROL
33-1 1 SM294286-0030 O-RING, VALVE
34 1 SM294285-0030 O-RING, SOLENOID
35 1 SM294160-0120 VALVE SUB-ASSY, REGULATE 1012
35 1 SM294160-0160 VALVE SUB-ASSY, REGULATE B 1101 1107
35 1 SM294160-0210 VALVE SUB-ASSY, REGULATE B 1107
35-1 1 SM294198-0130 O-RING, SUPPLY PUMP
35-2 1 SM294198-0140 O-RING, SUPPLY PUMP
36 1 SM294010-0071 PIPE, SUPPLY PUMP
37 2 294169-0010 PIN, STOPPER
38 1 SM294115-0031 PLUG, FILTER
39 1 SM294117-0020 GASKET, PLUG
4 1 294021-0020 KEY, WOODRUFF 1109
4 1 294021-0040 KEY, WOODRUFF D 1109
40 1 SM097370-0050 FILTER SUB-ASSY
41 1 SM294198-0160 O-RING, SUPPLY PUMP
43 1 294259-0020 GASKET, SOLENOID
5 1 SM294170-0260 RING SUB-ASSY, CAM OUTER 2012
5 1 SM294170-0300 RING SUB-ASSY, CAM OUTER B 2012
52 1 SM090014-5170 CAP, VALVE HOLDER
53 1 SM098081-0100 COVER, RUBBER
54 1 SM098081-0110 COVER, RUBBER
6 1 SM294120-0330 COVER SUB-ASSY, BEARING
6-1 1 294197-0010 SEAL, OIL 2106
6-1 1 294197-0030 SEAL, OIL B 2106
7 6 SM096449-0380 BOLT, SOCKET
8 1 SM294198-0120 O-RING, SUPPLY PUMP
9 2 SM294198-0100 O-RING, SUPPLY PUMP
