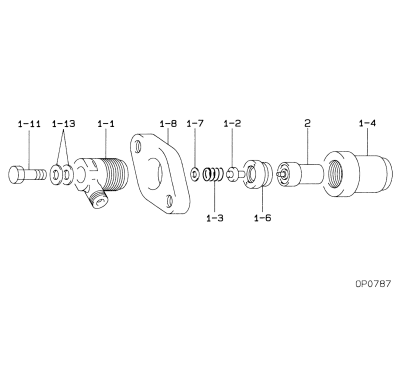

Распылитель — 0434200001 (0 434 200 001) DN4S1

Артикул Распылитель KOMATSU 2D94 — 093400-0200

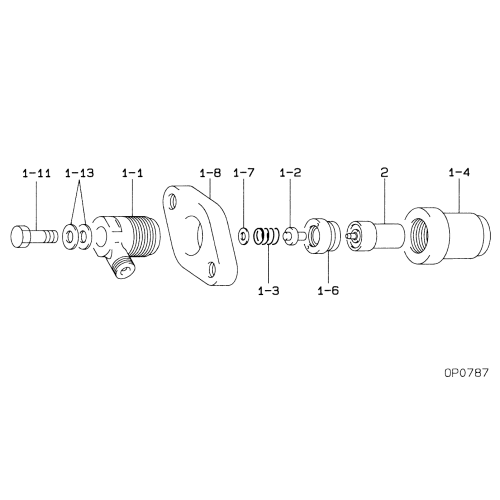

Position Qty Part Number Customer p/n Name Interchangeability Start Date Start Date
0 1 093500-2060 HOLDER & NOZZLE SET, NOZZLE
1 1 093100-2060 HOLDER ASSY, NOZZLE
1-1 1 093111-2060 BODY
1-11 1 949180-0152 SCREW, HOLLOW
1-13 2 949018-1020 WASHER, COPPER PLATE
1-2 1 093121-0030 PIN, NOZZLE HOLDER PRESSURE
1-3 1 093127-0020 SPRING, NOZZLE HOLDER PRESSURE
1-4 1 093164-0800 NUT, NOZZLE RETAINING
1-6 1 093174-0011 DISTANCE PIECE
1-7 1C 093175-0640 WASHER
1-7 1C 093175-0620 WASHER
1-7 1C 093175-0610 WASHER
1-7 1C 093175-0230 WASHER
1-7 1C 093175-0220 WASHER
1-7 1C 093175-0210 WASHER
1-7 1C 093175-1260 WASHER
1-7 1C 093175-1250 WASHER
1-7 1C 093175-1240 WASHER
1-7 1C 093175-1230 WASHER
1-7 1C 093175-1220 WASHER
1-7 1C 093175-1210 WASHER
1-7 1C 093175-1200 WASHER
1-7 1C 093175-1190 WASHER
1-7 1C 093175-0630 WASHER
1-8 1 093266-0080 FLANGE
2 1 093400-0200 NOZZLE ASSY
