Насос топливный высокого давления — F01G00505S (F 01G 005 05S) BOSCH

Артикул Насос топливный высокого давления — F01G00505S (F 01G 005 05S)
Нетто (кг): 30.1
Объём (л): 30.792
Длина, мм: 509
Ширина, мм: 199
Высота, мм: 304

Применимость
OE Внешние (OE External): ISU1156033422

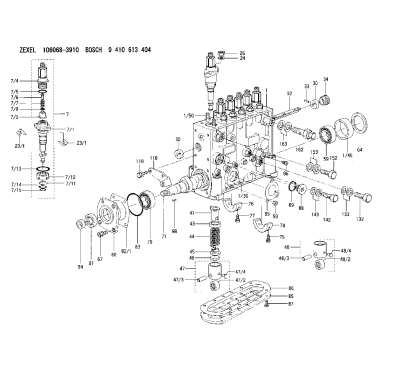

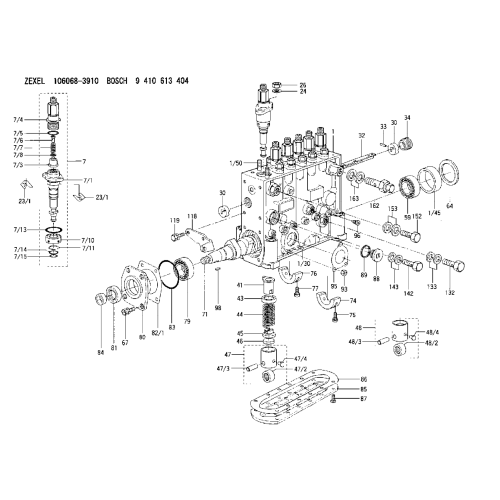

Position Number Bosch Number Name Info Qty
1 134070-4520 9411615642 PUMP HOUSING 1#
1/30 029040-6020 9411617064 STUD 3
1/45 134311-0000 9411610349 SPACER RING 1
1/50 134138-0100 9411611092 STUD 12
7 134168-0920 9411615685 PLUNGER-AND-BARREL ASSY 6#
7/1 134173-4820 9413614281 PLUNGER-AND-BARREL ASSY:S48 6
7/3 134160-0120 9413610232 DELIVERY-VALVE ASSEMBLY:02P 6
7/4 134171-0120 9411611094 FITTING 6
7/5 016500-1850 9442611139 O-RING 6
7/6 134117-1700 9411611090 FILLER PIECE 6
7/7 134112-3500 9411611975 COMPRESSION SPRING 6
7/8 134115-0300 9411611089 GASKET 6
7/10 134135-0300 9411611091 CAPSULE 6
7/11 029602-0010 9442610250 LOCKING WASHER 6
7/13 139727-0300 9411612162 O-RING 6
7/14 139715-0400 9411612158 O-RING 6
7/15 139715-0400 9411612158 O-RING 6
23/1 139400-0900 9411610369 SHIM:T0.500 B 0
23/1 139400-1000 9411610370 SHIM:T0.525 B 0
23/1 139400-1100 9411610371 SHIM:T0.550 B 0
23/1 139400-1200 9411610372 SHIM:T0.575 B 0
23/1 139400-1300 9411610373 SHIM:T0.600 B 0
23/1 139400-1400 9411610374 SHIM:T0.625 B 0
23/1 139400-1500 9411610375 SHIM:T0.650 B 0
23/1 139400-1600 9411610376 SHIM:T0.675 B 0
23/1 139400-1700 9411610377 SHIM:T0.700 B 0
23/1 139400-1800 9411610378 SHIM:T0.725 B 0
23/1 139400-1900 9411610379 SHIM:T0.750 B 0
23/1 139400-2000 9411610380 SHIM:T0.775 B 0
23/1 139400-2100 9411610381 SHIM:T0.800 B 0
23/1 139400-2200 9411610382 SHIM:T0.825 B 0
23/1 139400-2300 9411610383 SHIM:T0.850 B 0
23/1 139400-2400 9411610384 SHIM:T0.875 B 0
23/1 139400-2500 9411610385 SHIM:T0.900 B 0
23/1 139400-2600 9411610386 SHIM:T0.925 B 0
23/1 139400-2700 9411610387 SHIM:T0.950 B 0
23/1 139400-2800 9411610388 SHIM:T0.975 B 0
23/1 139400-2900 9411610389 SHIM:T1.000 B 0
23/1 139400-3000 9411610390 SHIM:T1.025 B 0
23/1 139400-3100 9411610391 SHIM:T1.050 B 0
23/1 139400-3200 9411610392 SHIM:T1.075 B 0
23/1 139400-3300 9411610393 SHIM:T1.100 B 0
23/1 139400-3400 9411610394 SHIM:T1.125 B 0
23/1 139400-3500 9411610395 SHIM:T1.150 B 0
23/1 139400-3600 9411610396 SHIM:T1.175 B 0
23/1 139400-3700 9411610397 SHIM:T1.200 B 0
23/1 139400-3800 9411610398 SHIM:T1.225 B 0
23/1 139400-3900 9411610399 SHIM:T1.250 B 0
23/1 139400-4000 9411610400 SHIM:T1.275 B 0
23/1 139400-4100 9411610401 SHIM:T1.300 B 0
23/1 139400-4200 9411610402 SHIM:T1.325 B 0
23/1 139400-4300 9411610403 SHIM:T1.350 B 0
23/1 139400-4400 9411610404 SHIM:T1.375 B 0
23/1 139400-4500 9411610405 SHIM:T1.400 B 0
23/1 139400-4600 9411610406 SHIM:T1.425 B 0
23/1 139400-4700 9411610407 SHIM:T1.450 B 0
23/1 139400-4800 9411610408 SHIM:T1.475 B 0
23/1 139400-4900 9411610409 SHIM:T1.500 B 0
23/1 139400-5000 9411610410 SHIM:T1.525 B 0
23/1 139400-5100 9411610411 SHIM:T1.550 B 0
23/1 139400-5200 9411610412 SHIM:T1.575 B 0
23/1 139400-5300 9411610413 SHIM:T1.600 B 0
23/1 139400-5400 9411610414 SHIM:T1.625 B 0
23/1 139400-5500 9411610415 SHIM:T1.650 B 0
23/1 139400-5600 9411610416 SHIM:T1.675 B 0
23/1 139400-5700 9411610417 SHIM:T1.700 B 0
23/1 139400-5800 9411610418 SHIM:T1.725 B 0
23/1 139400-5900 9411610419 SHIM:T1.750 B 0
23/1 139400-6000 9411610420 SHIM:T1.775 B 0
23/1 139400-6100 9411610421 SHIM:T1.800 B 0
23/1 139400-6200 9411610422 SHIM:T1.825 B 0
23/1 139400-6300 9411610423 SHIM:T1.850 B 0
23/1 139400-6400 9411610424 SHIM:T1.875 B 0
23/1 139400-6500 9411610425 SHIM:T1.900 B 0
23/1 139400-6600 9411610426 SHIM:T1.925 B 0
23/1 139400-6700 9411610427 SHIM:T1.950 B 0
23/1 139400-6800 9411610428 SHIM:T1.975 B 0
24 134132-0300 9411610333 PLAIN WASHER 12
26 139210-0200 9411611116 UNION NUT 12
30 134001-0000 9411610317 BUSHING 2
32 134256-4500 9411613081 CONTROL RACK 1
33 024030-2030 9442610472 BEARING PIN 1
34 134222-0000 9411610340 BUSHING 1
41 134241-0620 9411611100 CONTROL SLEEVE 6
43 134216-0000 9411610339 SLOTTED WASHER 6
44 134215-0800 9411611098 COMPRESSION SPRING 6
45 134217-0700 9411611099 SLOTTED WASHER 6
46 134563-2700 9411611147 SPRING SEAT 6
47 134200-2620 9411615645 TAPPET 4#
47/2 134204-0200 9411611097 ROLLER 4
47/3 134203-0000 9411610710 BEARING PIN 4
47/4 131206-0500 9411617030 SLIDER 4
48 134200-2720 9411615646 TAPPET 2#
48/2 134204-0200 9411611097 ROLLER 2
48/3 134203-0000 9411610710 BEARING PIN 2
48/4 131206-0500 9411617030 SLIDER 2
59 016650-2230 9442610259 BEARING PLATE:4T-32205(NSK) 1
64 134303-0500 9411611101 SHIM 1
67 139006-4200 9411611115 BLEEDER SCREW 4
71 134340-2700 9411615648 CAMSHAFT 1
74 134306-1000 9411611102 BEARING SHELL 1
75 020106-2040 9421617102 BLEEDER SCREW 2
76 134306-1100 9411611103 BEARING SHELL 2
77 020106-2040 9421617102 BLEEDER SCREW 4
79 035302-0600 9442610863 BEARING PLATE 1
80 134316-3300 9411611111 COVER 1
81 139634-0200 9411611117 PACKING RING 1
82/1 134314-0700 9411611104 SHIM:T0.1 B 0
82/1 134314-0800 9411611105 SHIM:T0.12 B 0
82/1 134314-0900 9411611106 SHIM:T0.14 B 0
82/1 134314-1000 9411611107 SHIM:T0.16 B 0
82/1 134314-1100 9411611108 SHIM:T0.18 B 0
82/1 134314-1200 9411611109 SHIM:T0.3 B 0
82/1 134314-1300 9411611110 SHIM:T0.5 B 0
83 139766-0200 9411612166 O-RING 1
84 134563-2500 9411611113 SLIDING PIECE 1
85 134043-0800 9411610321 COVER 1
86 134042-1400 9411611621 GASKET 1
87 012206-1640 9442610466 FLAT-HEAD SCREW 12
88 134045-0100 9411610322 CAPSULE 1
89 026524-2940 9442610474 GASKET 1
93 139206-0400 9411610203 UNION NUT 3
95 131041-0800 9411611492 GASKET 1
96 134047-0000 9411610323 CAPSULE 6
98 025806-2210 9442610860 WOODRUFF KEY 1
118 134496-6000 9411612295 POINTER 1
119 029020-6210 9421617148 BLEEDER SCREW 2
132 135430-0100 9411613190 EYE BOLT 1
133 139514-0000 9411610211 GASKET 2
142 139810-0000 9411610212 EYE BOLT 1
143 139510-0000 9411610209 GASKET 2
152 139814-0000 9411610214 EYE BOLT 1
153 139514-0000 9411610211 GASKET 2
162 134424-4320 9411613132 OVER FLOW VALVE 1
163 139514-0000 9411610211 GASKET 2
