Насос топливный высокого давления 8925A350G DP200 DELPHI
Артикул: 8925A350G
Производитель:
Розница
0 ₽
В наличии ( шт )
Артикул Насос топливный высокого давления DP200 — 8925A350G
Нетто (кг): 8.52
Длина, мм: 360
Ширина, мм: 235
Высота, мм: 220

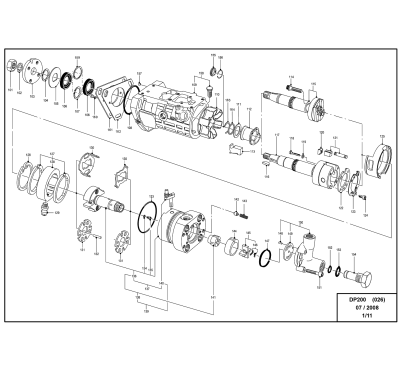

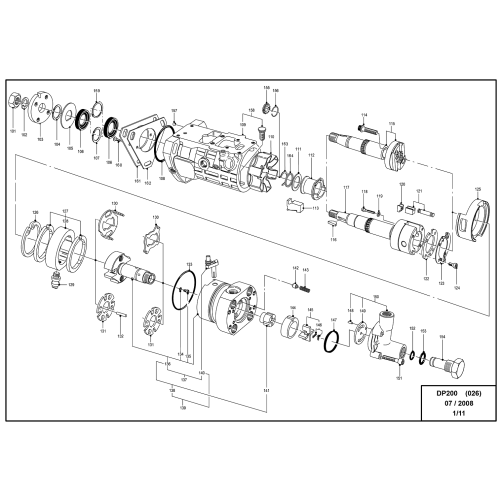

101 1 7185-758 Drive Shaft Nut (Ref 7185-758)
102 1 7185-705 Spring Washer (Ref 7185-705)
103 1 7185-473 Drive Flange (Ref 7185-473)
104 1 7174-797 D/Shaft Circlip (Ref 7174-797)
105 1 NOTE-26-A1 Thrust Washer
106 2 7174-856 D/Shaft Oil Seal (Ref 7174-856)
107 1 7185-501 D/Shaft Circlip (Ref 7185-501)
108 1 7185-973 O Ring (Ref 7185-973)
110 1 7174-73E Governor Weight Cage (Ref 7174-73E)
111 1 5936-124A Thrust Washer (Ref 5936-124A)
112 1 7185-718 Thrust Sleeve (Ref 7185-718)
113 4 7123-914J Governor Weight (Ref 7123-914J)
117 1 7135-492B Drive Shaft (Ref 7135-492B)
121 1 7135-72S Roller & Shoe Kit (Ref 7135-72S)
122 1 7189-296 Shoe Retaining Plate (Ref 7189-296)
123 1 7189-295 Catch Plate (Ref 7189-295)
124 4 7174-350A Catch Plate Screw (Ref 7174-350A)
125 1 7182-019M Inner Bearing (Ref 7182-019M)
127 1 7189-100BB Cam & Scroll Kit (Ref 7189-100BB)
129 1 7182-923 Cam Ring Screw (Ref 7182-923)
133 1 9167-415P O Ring (Ref 9167-415P)
137 1 7185-918L Hd, Rotor & M/Valve (Ref 7185-918L)
140 1 NOTE-26-A3 Metering Valve
141 1 7182-245 Transfer pump rotor (Ref 7182-245)
144 1 7139-540 Transfer Pump Liner (Ref 7139-540)
145 1 7135-108 TP Blade/Spring Kit (Ref 7135-108)
146 2 7182-078 TP Blade Spring (Ref 7182-078)
147 1 7139-043 TP Liner Seal (Ref 7139-043)
148 1 ND1-063 Endplate Dowel Pin (Ref ND1-063)
149 1 7180-147A Sandwich Plate (Ref 7180-147A)
150 1 7135-354P TP Endplate Kit (Ref 7135-354P)
151 4 7185-015 Endplate Screw (Ref 7185-015)
152 1 7185-950GT Plug Screw Seal (Ref 7185-950GT)
153 1 7185-950GX O Ring (Ref 7185-950GX)
154 1 7185-299A TP Accumulator (Ref 7185-299A)
158 1 7243-073AC Pump Housing & Stud (Ref 7243-073AC)
201 1 7243-513 Latch Valve Assy (Ref 7243-513)
206 1 7183-200D O Ring (Ref 7183-200D)
209 1 7185-950FV O Ring (Ref 7185-950FV)
213 1 7185-950GB O Ring (Ref 7185-950GB)
214 1 7185-950HG O Ring (Ref 7185-950HG)
217 1 7185-950GB O Ring (Ref 7185-950GB)
218 1 7185-950FV O Ring (Ref 7185-950FV)
219 1 7243-110B LLA VALVE ASSEMBLY (Ref 7243-110B)
220 1 NC7-008 Ball (Ref NC7-008)
221 1 7185-217A LLA Valve Spring (Ref 7185-217A)
222 1 7185-692 LLA Valve Adjuster (Ref 7185-692)
226 1 7182-234 Head Lockbolt Filter (Ref 7182-234)
230 1 7180-70 Protection Cap (Ref 7180-70)
235 1 7185-900G Stop Solenoid (Ref 7185-900G)
236 1 5855-030HE O Ring (Ref 5855-030HE)
239 1 7185-793 Protection Plug (Ref 7185-793)
240 1 7180-348H Inlet Connection (Ref 7180-348H)
241 1 7185-950HP O Ring (Ref 7185-950HP)
242 1 7123-620A Endplate Filter (Ref 7123-620A)
244 1 7185-672B Regulating Spring (Ref 7185-672B)
246 1 7185-950FR O Ring (Ref 7185-950FR)
247 1 7139-010A Spring (Ref 7139-010A)
248 1 7180-316 Washer (Ref 7180-316)
250 1 6418-053 Nameplate (Ref 6418-053)
251 2 7185-849 Nameplate Rivet (Ref 7185-849)
252 1 7189-003 D/Shaft Lock Screw (Ref 7189-003)
253 1 7183-200MX10 O RING (Ref 7183-200MX10)
254 1 7189-002X10 WASHER (Ref 7189-002X10)
255 1 9101-335 Blanking Plug (Ref 9101-335)
256 1 9007-497BP Sealing Washer (Ref 9007-497BP)
257 1 7167-299 Housing Plug Bolt (Ref 7167-299)
258 1 7185-950FK O Ring (Ref 7185-950FK)
260 1 7185-172 Support Bracket (Ref 7185-172)
261 4 7185-222 Sealing Washer (Ref 7185-222)
262 4 7182-447AG Delivery Valve (Ref 7182-447AG)
263 4 7185-128A DV Spring (Ref 7185-128A)
264 4 7185-129 DV Spring Guide (Ref 7185-129)
265 4 28211055 DV Holder (Ref 28211055)
267 4 7167-667A Bracket Screw (Ref 7167-667A)
268 4 7185-852A Clamping Plate Nut (Ref 7185-852A)
269 4 7139-979 Protection Cap (Ref 7139-979)
270 1 7185-237A Clamping Plate (Ref 7185-237A)
277 1 7183-200D O Ring (Ref 7183-200D)
278 1 7185-694A Tamper Resist Plug (Ref 7185-694A)
279 1 7185-694A Tamper Resist Plug (Ref 7185-694A)
289 1 7243-004 Regulating Sleeve Assy (Ref 7243-004)
290 1 7183-200C O Ring (Ref 7183-200C)
294 1 7243-107 Screw (Ref 7243-107)
295 1 7243-108 Bracket (Ref 7243-108)
296 1 7243-106 Nut (Ref 7243-106)
301 4 7187-129D Endplate Screw (Ref 7187-129D)
306 1 7185-950FU O Ring (Ref 7185-950FU)
307 1 7185-312 Thermal Wax Motor (Ref 7185-312)
308 1 7185-950HH O Ring (Ref 7185-950HH)
323 1 7182-301H AA Hsg & Piston (Ref 7182-301H)
324 1 7185-950BD O Ring (Ref 7185-950BD)
327 A2 7182-197C Advance Spring Shim (Ref 7182-197C)
327 A2 7182-197B Advance Spring Shim (Ref 7182-197B)
327 A2 7182-197D Advance Spring Shim (Ref 7182-197D)
327 A2 7182-197A Advance Spring Shim (Ref 7182-197A)
328 1 7185-394B Advance Ctrl Spring (Ref 7185-394B)
335 1 7189-291X10 CONNECTOR (Ref 7189-291X10)
336 1 7185-854C Nut (Ref 7185-854C)
402 1 7185-426 PECSA Housing (Ref 7185-426)
403 1 7182-299 Circlip (Ref 7182-299)
404 1 7182-216 Washer (Ref 7182-216)
405 1 7185-416A Adv Ref Stop Plug (Ref 7185-416A)
406 1 7185-407L Cold Adv Control Pin (Ref 7185-407L)
407 1 7185-783 PECSA Guide Dowel (Ref 7185-783)
408 1 7185-395 PECSA Spring Seat (Ref 7185-395)
409 1 7185-391A PECSA Spring (Ref 7185-391A)
410 1 7185-422 PECSA Cam (Ref 7185-422)
413 1 7185-635E Advance Spring Cap (Ref 7185-635E)
415 1 7183-209 Advance Hsg Gasket (Ref 7183-209)
416 1 7022-180D Sealing Washer (Ref 7022-180D)
417 1 5330-362B Housing Stud Cap Nut (Ref 5330-362B)
419 1 7185-950FR O Ring (Ref 7185-950FR)
420 1 7174-660AB Hd Locating Fitting (Ref 7174-660AB)
508 4 7174-895D Governor Cover Screw (Ref 7174-895D)
510 1 7185-213B Tamperproof Cap (Ref 7185-213B)
511 1 7182-966F Idle Screw (Ref 7182-966F)
512 1 7174-917C Tamperproof Nut (Ref 7174-917C)
514 1 7174-594P Max Speed Adj Screw (Ref 7174-594P)
515 1 7185-854E Idle Screw Lock Nut (Ref 7185-854E)
516 1 7174-545B Lock Washer (Ref 7174-545B)
517 1 7174-637 Self Lock Nut (Ref 7174-637)
518 1 7185-851V Washer (Ref 7185-851V)
519 1 7167-983A Spring Guide (Ref 7167-983A)
520 1 7182-968 Lever Return Spring (Ref 7182-968)
521 1 7182-706 Bush (Ref 7182-706)
522 1 7182-703 Spring Guide (Ref 7182-703)
523 1 7185-845C Throttle Lever (Ref 7185-845C)
524 1 7182-628 Dust Cover (Ref 7182-628)
537 1 7185-641 Gov Cover Plug Screw (Ref 7185-641)
538 1 7185-950GT Plug Screw Seal (Ref 7185-950GT)
601 1 7185-794 Gov Cov Trapped Seal (Ref 7185-794)
602 2 7185-950 O Ring (Ref 7185-950)
603 1 7123-770U Throttle Shaft (Ref 7123-770U)
604 1 7123-898G Governor Spring (Ref 7123-898G)
605 1 7174-641C Pivot Ball Washer (Ref 7174-641C)
606 1 7185-714B Idle Spring (Ref 7185-714B)
607 1 7182-607 Spring Peg (Ref 7182-607)
610 1 7135-270 Spring Link (Ref 7135-270)
612 1 7182-562 Tab Washer (Ref 7182-562)
613 1 7182-23 Control Bracket Bolt (Ref 7182-23)
614 1 7185-154C Governor Arm (Ref 7185-154C)
615 1 7182-23A Control Bracket Bolt (Ref 7182-23A)
616 1 7182-674 Tab Washer (Ref 7182-674)
617 1 7185-838 Spring Stop (Ref 7185-838)
618 1 7182-159 Scroll Plate Spring (Ref 7182-159)
619 1 28282146 Spring Pin Guide (Ref 28282146)
620 1 7189-257 Control Bracket Bolt (Ref 7189-257)
621 1 7189-257 Control Bracket Bolt (Ref 7189-257)
630 1 7185-793 Protection Plug (Ref 7185-793)
634 1 7139-854W Non-Return Valve (Ref 7139-854W)
635 1 7185-950ET Sealing Washer (Ref 7185-950ET)
639 1 7185-793 Protection Plug (Ref 7185-793)
640 1 7182-792B Backleak Adaptor (Ref 7182-792B)
701 1 7185-307A Torque Trim Adjuster (Ref 7185-307A)
702 1 7185-950FV O Ring (Ref 7185-950FV)
703 1 NOTE-26-A4 TT Control Spring
704 1 7185-478 Spring Plate (Ref 7185-478)
705 1 7185-477A Excess Fuel Spring (Ref 7185-477A)
706 1 7185-770BQ Torque Trimmer Cam (Ref 7185-770BQ)
707 1 7185-223 E-Clip (Ref 7185-223)
708 1 7185-274 Cam Follower (Ref 7185-274)
712 1 7185-950FV O Ring (Ref 7185-950FV)
713 1 7185-745 Pressure Plug (Ref 7185-745)
714 1 7185-305 Circlip (Ref 7185-305)
715 1 7185-487H Gov Cover & Piston (Ref 7185-487H)
718 1 7185-793 Protection Plug (Ref 7185-793)
720 1 7185-950DV O Ring (Ref 7185-950DV)
721 1 7185-306 Washer (Ref 7185-306)
722 1 7182-20C Dowel (Ref 7182-20C)
723 1 7182-663A Boost Ctrl Housing (Ref 7182-663A)
724 1 7182-584B Shim (Ref 7182-584B)
725 1 7185-954 Adjusting Screw Body (Ref 7185-954)
726 1 7182-577F Stroke Adj Screw (Ref 7182-577F)
727 1 7185-950FC O Ring (Ref 7185-950FC)
728 AR 7182-584A Shim (Ref 7182-584A)
728 AR 7182-584B Shim (Ref 7182-584B)
728 AR 7182-584C Shim (Ref 7182-584C)
728 AR 7182-584D Shim (Ref 7182-584D)
729 1 7182-590C Boost Spring (Ref 7182-590C)
733 1 7185-650A Boost Housing Cover (Ref 7185-650A)
734 2 7185-645 Boost Cover Bolt (Ref 7185-645)
739 1 7185-368 Shim (Ref 7185-368)
741 1 7189-417 Control Bracket Assy (Ref 7189-417)
743 1 7135-277L Boost Diaphragm Assy (Ref 7135-277L)
804 1 7185-949 Banjo & Pipe (Ref 7185-949)
805 2 7185-815F O Ring (Ref 7185-815F)
9999 1 7135-277A Overhaul Kit (Ref 7135-277A)
9999 1 7135-277L Boost Diaphragm Assy (Ref 7135-277L)
9999 1 7135-277B Overhaul Kit (Ref 7135-277B)
